Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | S-PCB |
| Certification : | ISO14001, ISO9001, UL, cUL, TS16949 |
| Price : | Customized |
| Payment Terms : | T/T, Western Union, paypal ect. |
| Supply Ability : | 60,000sqm per month |
| Delivery Time : | 1-15 working days |

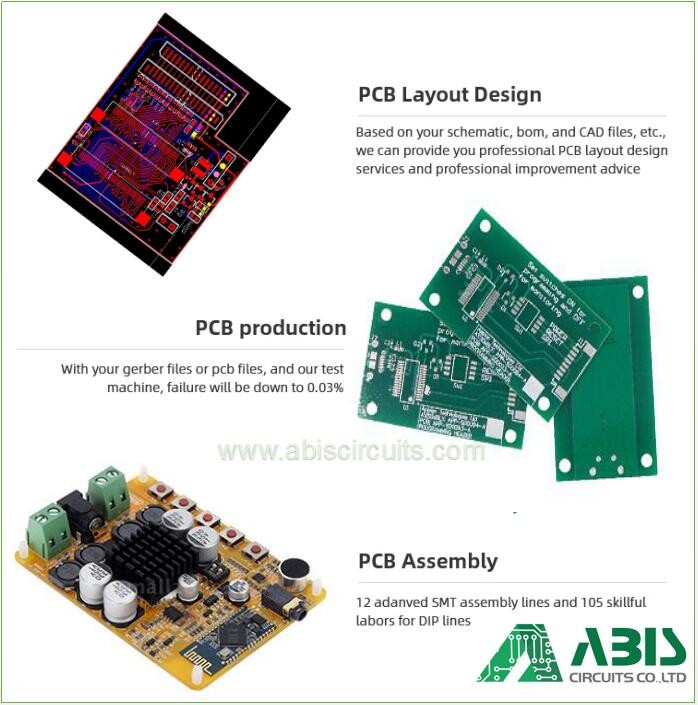

Single Double Sided 1 layer PCB Multilayer Fr4 PCB Design PCB Assembly PCBA
Capacity:
| Layers | 1~20 |
| Board Thickness | 0.1mm-8.0mm |
| Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc |
| Max Panel Size | 600mm×1200mm |
| Min Hole Size | 0.1mm |
| Min Line Width/Space | 3mil(0.075mm) |
| Board Outline Tolerance | 0.10mm |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Out Layer Copper Thickness | 18um--350um |
| Drilling Hole (Mechanical) | 17um--175um |
| Finish Hole (Mechanical) | 0.10mm--6.30mm |
| Diameter Tolerance (Mechanical) | 0.05mm |
| Registration (Mechanical) | 0.075mm |
| Aspect Ratio | 16:01 |
| Solder Mask Type | LPI |
| SMT Mini. Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance Control Tolerance | 10% |
| Surface finish | ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold |
| Soldermask | Green/Yellow/Black/White/Red/Blue |
| Silkscreen | Red/Yellow/Black/White |
| Certificate | UL, ISO 9001, ISO14001, IATF16949 |
| Special Request | Blind hole, Gold finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating, Half holes |
| Material Suppliers | Shengyi, ITEQ, Taiyo, etc. |
| Common Package | Vacuum+Carton |
Related Products:
Company Profile:
Abis Circuits Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 15 years+ development, we could make the PCB from 1L to 20L, with a monthly production capability of 60,000 square meters. Abis Circuits is providing high-quality bare PCB and PCB assembly service, including components sourcing, function test, conformal coating, and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.
1. Single-sided PCB, double side & multi-layer PCB.
2. CEM-1, FR-4, FR-4 High TG, Aluminum base material,Rogers,TEFLON.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP,gold
plating/finger,Carbon ink,Peelable mask.
4. Circuit Board PCB adhere to IPC Class 2&3 international PCB
standard.
5. Quantities range from prototype to medium/big batch production.
6.100% E-Test.
Certificatiion:
Workshop:
FAQ:
Q1:Are you a factory or trade company?
A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in
PCB/PCBA Board for 12 years.
Q2:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over
3 square meters, usually tested by fixture, this will be more
faster. Due to there's many steps to PCB production, we usually do
inspection after every step.
Q3: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX,
TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q4: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing
specifications; If need PCBA,Please provide Gerber File,
Manufacturing specification, BOM list and Pick & Place/XY file.
Q5: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at
first.
|
|
