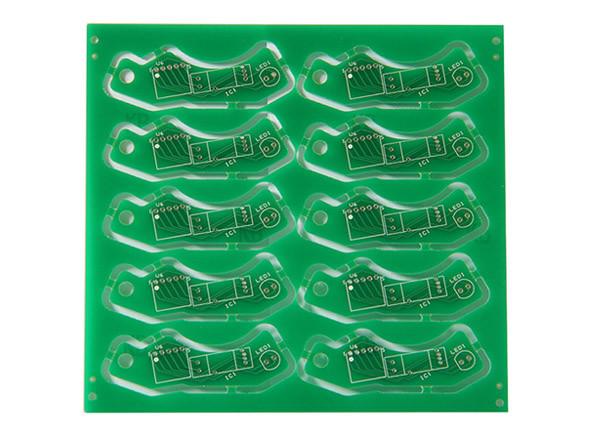

Rigid Board CEM-1 Single Side PCB with Routing Profile in White Silkscreen color
1.Company introduction
2.Factory
| No | Items | Capability |
| 1 | Layer Counts | 1-20 |
| 2 | Material | FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc |
| 3 | Maximum Size | 600mm x 1200mm |
| 4 | Board Outline Tolerance | ±0.10mm |
| 5 | Board Thickness | 0.20mm-8.00mm |
| 6 | Thickness Tolerance(t≥0.8mm) | ±8% |
| 7 | Thickness Tolerance(t<0.8mm) | ±10% |
| 8 | Insulation Layer Thickness | 0.075mm-5.00mm |
| 9 | Minimum Line | 0.075mm |
| 10 | Minimum Space | 0.075mm |
| 11 | Out Layer Copper Thickness | 18um-350um |
| 12 | Inner Layer Copper Thickness | 17um-175um |
| 13 | Drilling Hole(Mechanical) | 0.15mm-6.35mm |
| 14 | Finish Hole(Mechanical) | 0.10mm-6.30mm |
| 15 | Diameter Tolerance(Mechanical) | 0.05mm |
| 16 | Registration(Mechanical) | 0.075mm |
| 17 | Aspect Ratio | 16:01 |
| 18 | Solder Mask Type | LPI |
| 19 | SMT Mini. Solder Mask Width | 0.075mm |
| 20 | Mini. Solder Mask Clearance | 0.05mm |
| 21 | Plug Hole Diameter | 0.25mm*0.60mm |
| 22 | Impedance Control Tolerance | ±10% |
| 23 | Surface Finish | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc. |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||
