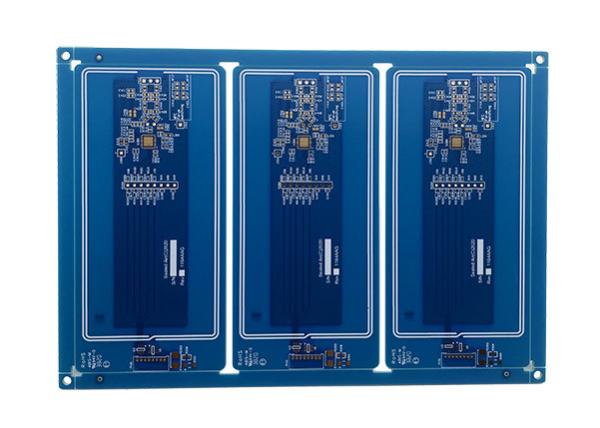

    FR-4 CEM-1 Single Sided Circuit Board LPI Blue Soldermask

    Ask Lasest Price
    Certification : ISO14001, ISO9001, UL, cUL, TS16949
    Price : Customized
    Payment Terms : T/T, Western Union, paypal ect.
    Supply Ability : 60,000sqm per month
    Delivery Time : 1-15 working days
    • Product Details
    • Company Profile

    FR-4 CEM-1 Single Sided Circuit Board LPI Blue Soldermask

    LPI Blue Soldermask FR-4 CEM-1 Single Sided Printed Circuits Board


    Abis Circuits Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 14 years+ development, we could make the PCB from 1L to 20L, with a monthly production capability of 60,000 square meters. Abis Circuits is providing high-quality bare PCB and PCB assembly service, including components sourcing, function test, conformal coating, and complete assembly for clients all over the world, Our main market is Europe, north USA, Australia, South America, and Asia.


    More than 4 years of working experience for technical backbone, 85% of front-line operation staff, more than 3 years of working experience.

    Operation plant space:

    (I) 10000 Square meters

    (II) 60000 Square meters


    Employees:

    (I) 300 Man Powers

    (II) 900 Man Powers


    Eng. Technical:

    (I) 20 QA QC Engineers

    (II) 60 QA QC Engineers


    Capacity:


    ItemSpec
    Layers1~20
    Board Thickness0.1mm-8.0mm
    MaterialFR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc
    Max Panel Size600mm×1200mm
    Min Hole Size0.1mm
    Min Line Width/Space3mil(0.075mm)
    Board Outline Tolerance士0.10mm
    Insulation Layer Thickness0.075mm--5.00mm
    Out Layer Copper Thickness18um--350um
    Drilling Hole (Mechanical)17um--175um
    Finish Hole (Mechanical)0.10mm--6.30mm
    Diameter Tolerance (Mechanical)0.05mm
    Registration (Mechanical)0.075mm
    Aspect Ratio16:01
    Solder Mask TypeLPI
    SMT Mini. Solder Mask Width0.075mm
    Mini. Solder Mask Clearance0.05mm
    Plug Hole Diameter0.25mm--0.60mm
    Impedance Control Tolerance士10%
    Surface finishENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold
    SoldermaskGreen/Yellow/Black/White/Red/Blue
    SilkscreenRed/Yellow/Black/White
    CertificateUL, ISO 9001, ISO14001, IATF16949
    Special RequestBlind hole, Gold finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating, Half holes
    Material SuppliersShengyi, ITEQ, Taiyo, etc.
    Common PackageVacuum+Carton

    Factory History:

    In 2006, ABIS Electronics Founded, and Set up the factory in Shenzhen

    In 2008, Shenzhen Factory Put into Production and Passed the certification of Americal UL and ISO9001.

    In 2009, Shenzhen Factory got Canada UL.and Start to make 16 Layers in Volume

    In 2010, Overseas Sales Department ABIS CIRCUITS Co.,ltd established

    In 2010, Acquired the ISO14001 environmental management system certification

    In 2012, The manufacturing equipment was updated and a batch of cutting-edge manufacturing equipment was imported from Sweden, France, the United States, Germany, and other countries

    In 2015, We have a 30% investment in our Subcontractor in Huizhou, No of Employees 1200 with 5000 square meters, the plant monthly product capability reached 40,000m2.

    In 2016, The team was refined, and all staff participated in the development training to create a wolf team.

    In 2017, Attend Expo Electronica 2017/ electronica India

    In 2018, Attend Expo Electronica 2018/Electronica INDIA

    In 2019, Attend Expo Electronica 2019/ Electronica India


    FAQ:


    Q1: How can I get a quotation:
    . Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber

    Q2: Can you manufacture my PCBs from a picture file?
    . Could you please provide a sample?


    Q3: Do you have PCB in stock?
    . Most of our PCB board are customized, which according to Gerber file.
    . ABIS has samples in stock that could be sent to you for quality checking always.


    Q4: What board manufacturer do you use for FR4?
    . Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).

    Q5: Will my PCB files be checked?
    . Checked within 12 hours. Once Engineer's question and working file be approved, production will start.

    Q6: What do you require in order to produce an assembly quotation?
    . Bill of materials (BOM) detailing:
    a), manufacturers parts numbers,
    b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
    c), PCBA sample photos if possible.
    d), Quantity


    ABIS&Customer




    ABIS cares every your order even 1 piece
