Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | RF-5 |
| Certification : | UL, ISO9001,ISO14001,SGS,RoHS, TS16949 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 60,000 s.q.m/month |
| Delivery Time : | 0.5-4 week |

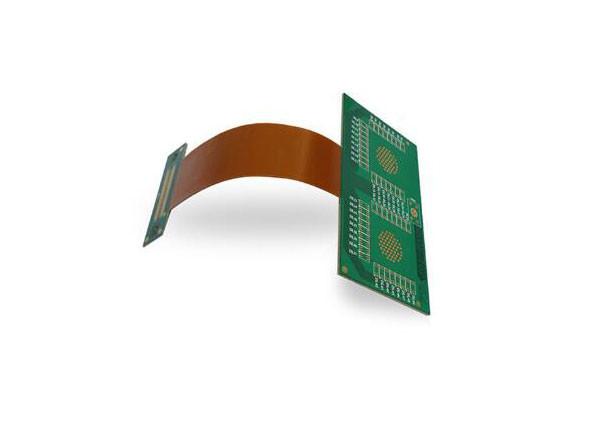

1. FR4 TG170+PET rigid flex PCB.
2. 8 layer PCB.
3. Consumer electronics application.
4. Immersion gold 3u'' surface coating.
5. ±10% Impedance controlled.
| 1 | Layer | 8 layer |
| 2 | Material | FR4 TG170+PET |
| 3 | PCB thickness | 1.55mm |
| 4 | Application | Consumer electronic |
| 5 | Surface finish | Immersion gold 3u'' |
| 6 | Wrap and twist | 0.075% |
| 7 | Min holes | 0.17mm |
| 8 | Min line track | 0.2mm |
| 9 | Min space | 0.2mm |
| 10 | Copper weight | 2OZ |
| 11 | Soldermask | Green |
| 12 | Impedance control | ±10% |
| 13 | Overlay | White |
| 14 | Certificates | RoHS compliant,UL,ISO9001/14001,TS16949,SGS |
| 15 | Forwarders | DHL.UPS,Fedex etc |
FAQ
Q1:Do you special in rigid flex PCB?
A: Yes we have 13 years in this industry.
Q2:What's your quality assurance?
A: 100% electronic test before delivery.
Q3:How about ODB++ file inquiry?
A: Yes we can open it normally.
Q4: Do you have experience in 20layer Rigid flex PCB?
A: Yes.
Q5: Factory inspection available before quote?
A: Kindly if you sent Gerber inquiry and satisfy our quote, Then we
can provide perfect solution.
Q6: Share your export details?
A: HS code:85340090 for 1-4layer PCB, 85340010 for 4+layer PCB.
