Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | RF-S002 |
| Certification : | ISO14001, ISO9001, UL |
| Price : | Customized Price |
| Payment Terms : | T/T, Paypal, D/P |
| Supply Ability : | 60,000sqm per month |
| Delivery Time : | 4 weeks |
Our company has about 1100 workers and two PCB workshops with about 50000 square meters.
Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.

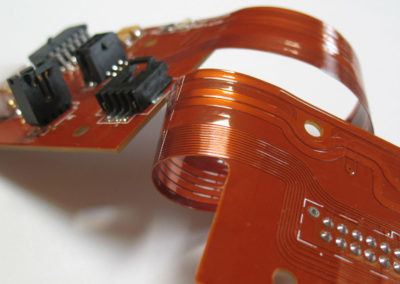

What is Rigid-Flex PCB and When be used?
Rigid-flex board is a combination of two very important printed circuit boards: rigid printed circuit board (hard board) and flexible printed circuit board (FPC soft board), the English name is rigid-flex PCB. The circuits of the hard board part and the flex board part are interconnected by plated through holes. Rigid flex circuits offer higher component density and better quality control. They are used when:
Required when circuit density and layout can not be routed on a single layer
Ground and power plane applications
Used for shielding applications
Dense surface mount assembly
What capacity does ABIS have?
| Raw material | FR-4, High TG FR-4, PTFE, Aluminum Base, Cu base. Rogers, etc |
| Board Thickness | 0.20mm--8.00mm |
| Layer | 1 Layer-20 Layer |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Min.hole size | 0.1mm (drilling hole) |
| Max. Board size | 1200mm*600mm |
| Out Layer Copper Thickness | 18um--350um |
| Inner Layer Copper Thickness | 17um--175um |
| NPTH Hole Tolerance | +/- 0.075mm |
| PTH hole Tolerance | +/-0.05mm |
| Outline tolerance | +/-0.13mm |
| Surface finished | HASL, ENIG, Chem. Tin, Flash Gold, OSP, Gold finger |
| Solder Mask Type | LPI |
| Others | RFQ. |
What certificate does ABIS have?
We have ISO14001, ISO9001, UL, cUL, and TS16949. You can see more in our company profile.
|
|
