Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Certification : | ISO14001, ISO9001, UL, cUL, TS16949 |
| Price : | Customized |
| Payment Terms : | T/T, Western Union, paypal ect. |
| Supply Ability : | 60,000sqm per month |
| Delivery Time : | 1-15 working days |
Multilayer PCB Circuit Board/ Fr4 PCB Printed Circuit Board/ PCB Assembly/ HDI PCB
PCB Capacity
| Layers | 1~20+ |
| Board Thickness | 0.1mm-8.0mm |
| Material | FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base, etc |
| Max Panel Size | 600mm×1200mm |
| Min Hole Size | 0.1mm |
| Min Line Width/Space | 3mil(0.075mm) |
| Board Outline Tolerance | 0.10mm |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Out Layer Copper Thickness | 18um--350um |
| Drilling Hole (Mechanical) | 17um--175um |
| Finish Hole (Mechanical) | 0.10mm--6.30mm |
| Diameter Tolerance (Mechanical) | 0.05mm |
| Registration (Mechanical) | 0.075mm |
| Aspect Ratio | 16:01 |
| Solder Mask Type | LPI |
| SMT Mini. Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance Control Tolerance | 10% |
| Surface finish | ENIG, OSP, HASL, Chem. Tin/Sn, Flash Gold |
| Soldermask | Green/Yellow/Black/White/Red/Blue |
| Silkscreen | Red/Yellow/Black/White |
| Certificate | UL, ISO 9001, ISO14001, IATF16949 |
| Special Request | Blind hole, Gold finger, BGA, Carbon ink, peelable mask, VIP process, Edge plating, Half holes |
| Material Suppliers | Shengyi, ITEQ, Taiyo, etc. |
| Common Package | Vacuum+Carton |
ABIS CIRCUITS Company deliver services, not only products. We offer
solutions, not only goods.
From the PCB production, the components purchasing to the
components assemble.
Includes:
Production Processes
Material Receiving → IQC → Stock → Material to SMT → SMT Line
Loading → Solder Paste/Glue Printing → Chip Mount → Reflow → 100%
Visual Inspection → Automated Optical Inspection (AOI) → SMT QC
Sampling → SMT Stock → Material to PTH → PTH Line Loading → Plated
Through Hole → Wave Soldering → Touch Up → 100% Visual Inspection →
PTH QC Sampling → In-Circuit Test (ICT) → Final Assembly →
Functional Test (FCT) → Packing → OQC Sampling → Shipping
Our Advantages
We provide a comprehensive turn-key EMS service to customers who want us to assemble the PCB into PCBA, including prototypes, NPI project, small and medium volume. We are also able to source all components for your PCB assembly project. Our engineers and sourcing team have rich experience in supply chain and EMS industry, with deep knowledges in SMT assembly allowing to resolve all the production issues. Our service is cost-effective, flexible, and reliable. We have satisfied customers across many industries including medical, industrial, automotive and consumer electronics.
Quality Control
Advanced equipment LIST
| AOI Testing | Checks for solder paste Checks for components down to 0201 Checks for missing components, offset, incorrect parts, polarity |
| X-Ray Inspection | X-Ray provides high-resolution inspection of: BGAs/Micro BGAs/Chip scale packages /Bare boards |
| In-Circuit Testing | In-Circuit Testing is commonly used in conjunction with AOI minimizing functional defects caused by component problems. |
| Power-up Test | Advanced Function Test Flash Device Programming Functional testing |
Packaging & Delivery

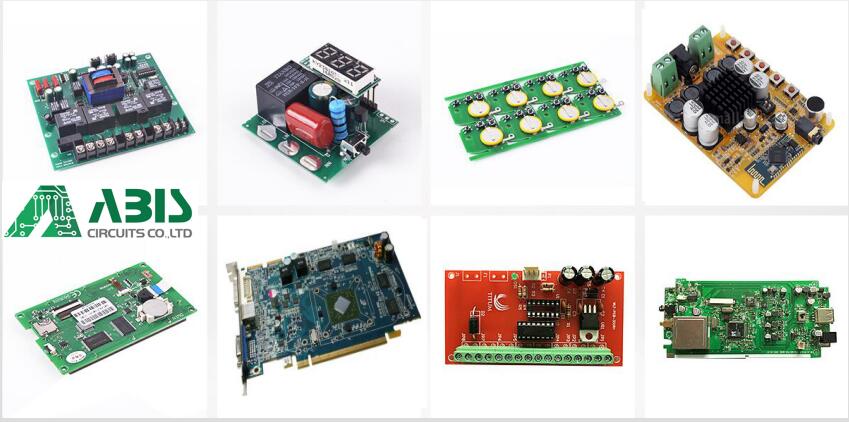

Rigid PCB, Flexible PCB, Rigid-Flex PCB, HDI PCB, PCB Assembly
Quotation from ABIS
To ensure an accurate quote, be sure to include the following information for your project:
Your custom quote will be delivered in just 2-24 hours, depending on the design complexity.
ABIS cares every your order even 1 piece
|
|
