    OSP ENIG 2u" Fr4 PCB Board 35um Copper Multilayer HDI PCB PCBA

    Fr4 PCB Printed Circuit Board Motherboard, Multilayer HDI PCB and PCBA for Electronics​


    Abis Circuits Co., Ltd is a professional PCB manufacturer which was established on Oct, 2006 and focus on double side, Multilayer and HDI pcb mass production.


    What is a HDI PCB?


    IPC-2226 defines HDI as a printed circuit board with a higher wiring density per unit area than conventional printed circuit boards (PCB). They have finer lines and spaces ≤ 100 µm / 0.10mm, smaller vias (<150 µm) and capture pads <400 µm / 0.40mm, and higher connection pad density (>20 pads/cm2) than employed in conventional PCB technology.


    HDI Capacities:


    Number of layers4 – 22 layers standard, 30 layers advanced
    Technology highlightsMultilayer boards with a higher connection pad density than standard boards, with finer lines/spaces, smaller via holes and capture pads allowing microvias to only penetrate select layers and also be placed in surface pads.
    HDI builds1+N+1, 2+N+2, 3+N+3,4+N+4, any layer in R&D
    MaterialsFR4 standard, FR4 high performance, Halogen free FR4, Rogers
    Copper weights (finished)18μm – 70μm
    Minimum track and gap0.075mm / 0.075mm
    PCB thickness0.40mm – 3.20mm
    Maxmimum dimensions610mm x 450mm; dependant upon laser drilling machine
    Surface finishes availableOSP, ENIG, Immersion tin, Immersion silver, Electrolytic gold, Gold fingers
    Minimum mechanical drill0.15mm
    Minimum laser drill0.10mm standard, 0.075mm advanced

    Product Information:


    No. of Layers1-20
    Max. Board Size860*610mm
    Board Thickness0.2-6.0mm
    Copper Thickness0.5OZ-6OZ
    MaterialVarious
    Surface FinishVarious
    SoldermaskVarious
    Minimum Soldermask Thickness0.025mm
    Minimun Soldermask BridgeDam0.15mm
    Minimum Soldermask Clearance0.075mm
    Peelable ColoursBlue
    Peelable Minimum Feature0.5mm
    Peelable Maximum Tented Hole3.0mm
    Scoring Angle30 Degrees
    Min. Remaining Thickness0.3mm
    Min. Distance to copper (From center of scoring line)0.5mm
    Min. Track0.1mm
    Min.Gap(TrackTrack,TrackPad,PadPad)0.1mm
    NPTH Min. Drill Size0.2mm
    Plated Drill Size± 0.075mm
    Non-Plated Drill Size± 0.05mm
    Drill Location Tolerance± 0.05mm
    OutlineRouted Slots± 0.1mm
    Line Width/Spacing±10%
    Board Thickness±10%
    Warp and Twist0.05%
    Scoring/V-Cut± 5 degrees
    Scoring Positional Tolerance± 0.1mm
    Aspect Ratio10:01

    Board Thickness:

    Number of LayersMin. Thickness in mm
    20.1
    40.3
    60.5
    80.7
    101.2
    121.3
    141.5
    161.7
    181.8
    202.2

    Lead Time:


    Board TypeManufacturing Lead Time
    Single Sided5 – 20 Days dependant on volume
    PTH7 – 25 Days dependant on volume
    Multilayer15 – 30 Days dependant on volume & Technology

    ·

    Air Freight Lead Time – 4 Days
    Sea Freight Lead Time – 30 Days
    All Far East lead times are subject to customs clearance
    Premium International shipments can be arranged by DHL, Fedex, UPS or TNT at extra cost

    Our mission:


    PCBs for demanding customers, on time with zero defects, produced sustainably at the lowest total cost. Manufacturing many different types of PCBs in smaller series (High-mix, Low-volume) involves constantly adjusting, adapting and problem solving.


    Our responsibility:


    We know that the PCB is a critical key component for our customers. And we know for sure that anything can happen during the complex production process involved – and it often does. In our world, taking full responsibility means a lot of things, including a responsible and sustainable approach in everything we do – socially, environmentally and ethically. When a problem occurs, we try as hard as we can to understand the problem and find a solution. Our mindset is that we own the problem and don’t leave until we have cleared it up.

    Why choose us:

    1, With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.

    2, We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.

    3, We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback


    FAQ:


    Q1: How can I get a quotation:
    . Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber

    Q2: Can you manufacture my PCBs from a picture file?
    . Could you please provide a sample?


    Q3: Do you have PCB in stock?
    . Most of our PCB board are customized, which according to Gerber file.
    . ABIS has samples in stock that could be sent to you for quality checking always.


    Q4: What board manufacturer do you use for FR4?
    . Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and Shengyi (China).

    Q5: Will my PCB files be checked?
    . Checked within 12 hours. Once Engineer's question and working file be approved, production will start.

    Q6: What do you require in order to produce an assembly quotation?
    . Bill of materials (BOM) detailing:
    a), manufacturers parts numbers,
    b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
    c), PCBA sample photos if possible.
    d), Quantity


    Q7: Can I get a sample?
    A: Yes, It's reasonable to get a sample to test our quality at first.

    Q8: Does ABIS CIRCUITS bevel gold fingers?
    A: Yes. A standard 45-degree bevel, also bevel at 15 or 30 degrees upon request. For multi-layer board, please ensure there is adequate back set for the bevels.

    Certifications:



    PCBs we made:

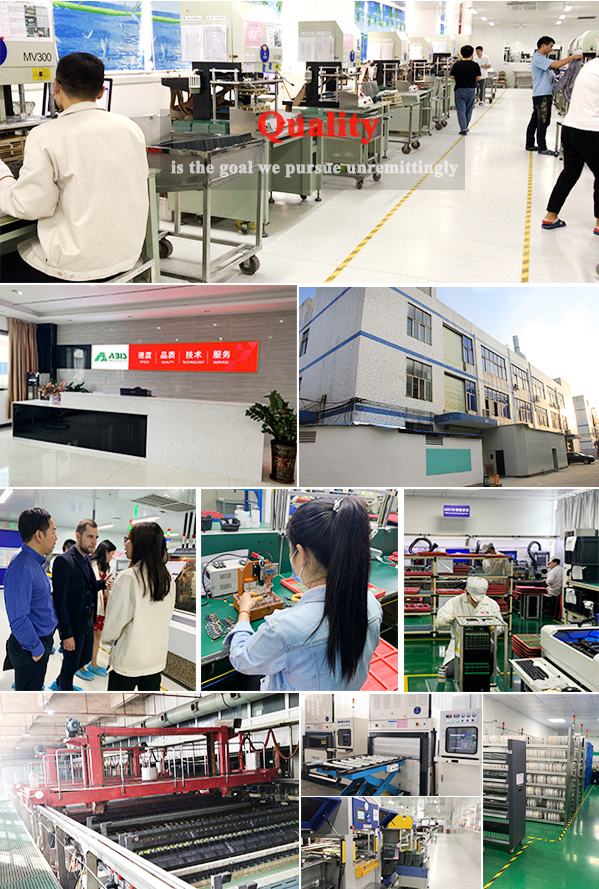

    Factory View:
