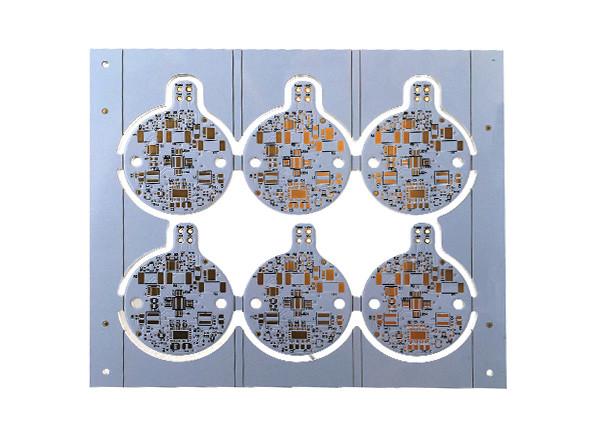

Double Side Metal Core PCB Aluminum Material OSP Surface Finish With White Solder Mask
1.Company introduction
Abis Circuits Co., Ltd is a professional PCB manufacturer for more than 10 years in China which was focus on double side, Multilayer and HDI PCB mass production. Our company was founded in 2006. We have two factories together and offer a wide range of services from quick turn, PCB prototypes to large volume PCB manufacturing. Our aim is help the clients gain more competitive strength and bring more mutual benefit to each other. Our quality won't let you disappoint. If you have any request, please contact me!
2.Factory
| No | Items | Capability |
| 1 | Layer Counts | 1-20 layers |
| 2 | Material | FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc |
| 3 | Maximum Size | 600mm x 1200mm |
| 4 | Board Outline Tolerance | ±0.10mm |
| 5 | Board Thickness | 0.20mm-8.00mm |
| 6 | Thickness Tolerance(t≥0.8mm) | ±8% |
| 7 | Thickness Tolerance(t<0.8mm) | ±10% |
| 8 | Insulation Layer Thickness | 0.075mm-5.00mm |
| 9 | Minimum Line | 0.075mm |
| 10 | Minimum Space | 0.075mm |
| 11 | Out Layer Copper Thickness | 18um-350um |
| 12 | Inner Layer Copper Thickness | 17um-175um |
| 13 | Drilling Hole(Mechanical) | 0.15mm-6.35mm |
| 14 | Finish Hole(Mechanical) | 0.10mm-6.30mm |
| 15 | Diameter Tolerance(Mechanical) | 0.05mm |
| 16 | Registration(Mechanical) | 0.075mm |
| 17 | Aspect Ratio | 16:01 |
| 18 | Solder Mask Type | LPI |
| 19 | SMT Mini. Solder Mask Width | 0.075mm |
| 20 | Mini. Solder Mask Clearance | 0.05mm |
| 21 | Plug Hole Diameter | 0.25mm*0.60mm |
| 22 | Impedance Control Tolerance | ±10% |
| 23 | Surface Finish | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc. |
| 24 | Soldermask Color | Green, White, Black, Red, Yellow, Blue |
| 25 | Silkscreen Color | White, Black, Yellow, Blue, etc |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||
