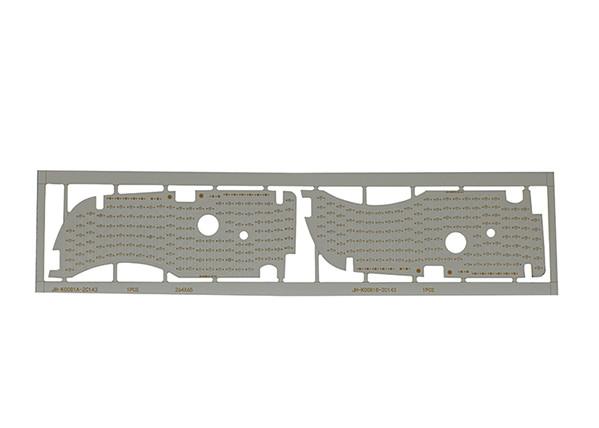

Single Side Metal Core PCB Aluminum Material Immersion Gold Surface Finish With Gold Legend
1.Company introduction
Abis Circuits Co., Ltd is a professional PCB manufacturer which was focus on double side, Multilayer and HDI PCB mass production. Our company was founded in 2006. We have two factories together. The factory in Shenzhen is specialized in small and middle volume orders and the factory in Huizhou is for big volume and HDI. Our aim is help the clients gain more competitive strength and bring more mutual benefit to each other. Our quality won't let you disappoint. If you have any request, please contact me!
2.Factory
| No | Items | Capability |
| 1 | Layer Counts | 1-20 layers |
| 2 | Material | FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc |
| 3 | Maximum Size | 600mm x 1200mm |
| 4 | Board Outline Tolerance | ±0.10mm |
| 5 | Board Thickness | 0.20mm-8.00mm |
| 6 | Thickness Tolerance(t≥0.8mm) | ±8% |
| 7 | Thickness Tolerance(t<0.8mm) | ±10% |
| 8 | Insulation Layer Thickness | 0.075mm-5.00mm |
| 9 | Minimum Line | 0.075mm |
| 10 | Minimum Space | 0.075mm |
| 11 | Out Layer Copper Thickness | 18um-350um |
| 12 | Inner Layer Copper Thickness | 17um-175um |
| 13 | Drilling Hole(Mechanical) | 0.15mm-6.35mm |
| 14 | Finish Hole(Mechanical) | 0.10mm-6.30mm |
| 15 | Diameter Tolerance(Mechanical) | 0.05mm |
| 16 | Registration(Mechanical) | 0.075mm |
| 17 | Aspect Ratio | 16:01 |
| 18 | Solder Mask Type | LPI |
| 19 | SMT Mini. Solder Mask Width | 0.075mm |
| 20 | Mini. Solder Mask Clearance | 0.05mm |
| 21 | Plug Hole Diameter | 0.25mm*0.60mm |
| 22 | Impedance Control Tolerance | ±10% |
| 23 | Surface Finish | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc. |
| 24 | Soldermask Color | Green, White, Black, Red, Yellow, Blue |
| 25 | Silkscreen Color | White, Black, Yellow, Blue, etc |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||
5.Certificate
6.Workshop
7.Customer Distribution
8.FAQ
Q1:What service do you have?
-We provide turnkey solution including RD, PCB fabrication, SMT,
final assembly,testing and other value-added service.
Q2:What are the main products of your PCB/PCBA services?
-Our PCB/PCBA services are mainly for the industries including
Medical, Automotive, Energy, Metering/Measurements, Consumer
Electronics.
Q3:Is Abis a factory or trade company?
-Abis is a company with two PCB factories located in Shenzhen,
Guangdong, China.
Q4:Can we inspect quality during production?
-Yes, we are open and transparent on each production process with
nothing to hide.We welcome customer inspect our production process
and check in house.
Q5:How can we ensure our information should not let third party to
see our design?
-We are willing to sign NDA effect by customer side local law and
promising to keep customers data in high confidential level.
Q6:What does Abis need for a customized PCB order?
-When you place a PCB order, the customers need to provide Gerber or PCB file.If you do not have the file in the correct format, you can send all the details related to the products.
Q7:What does Abis need for a customized PCBA order?
-When you place a PCBA order, you need to provide Gerber or pcb file and the BOM list to us.
|
|
