Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | ML-1 |
| Certification : | UL, ISO9001,ISO14001,SGS,RoHS, TS16949 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 60,000 s.q.m/month |
| Delivery Time : | 0.5-4 week |
1. 8L PCB.
2. FR4 TG180 material.
3. ENIG 2U'' + Hard gold fingers 20U''.
4. Satisfy IPC Class 3 standard.
5. Repeat order provide competitive qiote.
6.All Test before delivery.
| 1 | Layer | 8 Multi layer |
| 2 | Material | FR4 TG180 |
| 3 | PCB thickness | 0.062'' |
| 4 | USed for | Control system |
| 5 | Min drill hole | 0.12mm |
| 6 | Min line width | 0.078mm |
| 7 | Min gap | 0.076mm |
| 8 | Surface finish | Immersion gold 2u''+ Hard Gold fingers 20u'' |
| 9 | Copper weight | 70um |
| 10 | Solder resist | green,blue LPI |
| 11 | Outline Tolerance | ±0.1mm |
| 12 | Impedance controlled | ±10% |
| 13 | Hole tolerance | Plated hole:±0.075mm,Non PTH:±0.05mm |
| 14 | Certificates | ISO9001/14001,SGS,RoHS,ISO/TS16949,UL(cUL) |
| 15 | Profile | Route,Beveling |
| 16 | Production capability | 60,000 s.q.m/month |
FAQ
Q1:Factory or trade?
A: We're factory and involvement PCB made more than 10years.
Q2:Is my PCB file security after I share it to you?
A: You have our word. NDA if necessary.
Q3:How about quality ensurance?
A: All circuit board E-test and inspection after every step.
Q4: What about delivery?
A: 0.5-4weeks production time,DHL, UPS, FEDEX etc stabe forwarders.
Q5: Share all your certs?
A: ISO9001/14001, UL(cUL), SGS,RoHS compliant,ISO/TS16949.
Q6: Which type format file you want?
A: PCB project demand Gerber File(DXF,RS274-X,ODB++); PCBA project
require Gerber File + BOM(Bill of material).

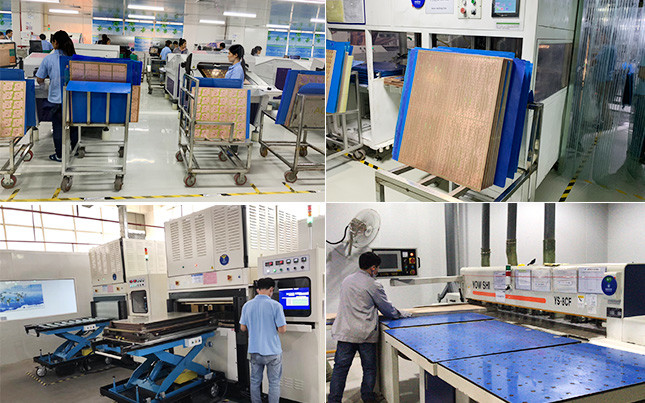

Factory & Certificates:
|
|
