CEM-3 Rigid Board Multi Layer PCB ENIG With Black Solder Mask In White Legend

1.Company introduction

2.Factory

Operation plant space:

(I) 10000 Square meters

(II) 60000 Square meters

Employees:

(I) 300 Man Powers

(II) 900 Man Powers

Eng. Technical:

(I) 20 QA QC Engineers

(II) 60 QA,QC Engineers

Factory-examining:

3.Technological capability

No	Items	Capability
1	Layer Counts	1-20 layers
2	Material	FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc
3	Maximum Size	600mm x 1200mm
4	Board Outline Tolerance	±0.10mm
5	Board Thickness	0.20mm-8.00mm
6	Thickness Tolerance(t≥0.8mm)	±8%
7	Thickness Tolerance(t<0.8mm)	±10%
8	Insulation Layer Thickness	0.075mm-5.00mm
9	Minimum Line	0.075mm
10	Minimum Space	0.075mm
11	Out Layer Copper Thickness	18um-350um
12	Inner Layer Copper Thickness	17um-175um
13	Drilling Hole(Mechanical)	0.15mm-6.35mm
14	Finish Hole(Mechanical)	0.10mm-6.30mm
15	Diameter Tolerance(Mechanical)	0.05mm
16	Registration(Mechanical)	0.075mm
17	Aspect Ratio	16:01
18	Solder Mask Type	LPI
19	SMT Mini. Solder Mask Width	0.075mm
20	Mini. Solder Mask Clearance	0.05mm
21	Plug Hole Diameter	0.25mm*0.60mm
22	Impedance Control Tolerance	±10%
23	Surface Finish	HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc.
24	Soldermask Color	Green, White, Black, Red, Yellow, Blue
25	Silkscreen Color	White, Black, Yellow, Blue

4.Lead time

Category		Quickest Lead time		Normal Lead Time	Mass Production
2 Layers		24hrs		3-4 working days	8-15 working days
4 Layers		48hrs		3-5 working days	10-15 working days
6 Layers		72hrs		3-6 working days	10-15 working days
8 Layers		96hrs		3-7 working days	14-18 working days
10 Layers		120hrs		3-8 working days	14-18 working days
12 Layers		120hrs		3-9 working days	20-26 working days
14 Layers		144hrs		3-10 working days	20-26 working days
16-20 Layers		Depends on the specific requirements
Above 20 Layers		Depends on the specific requirements

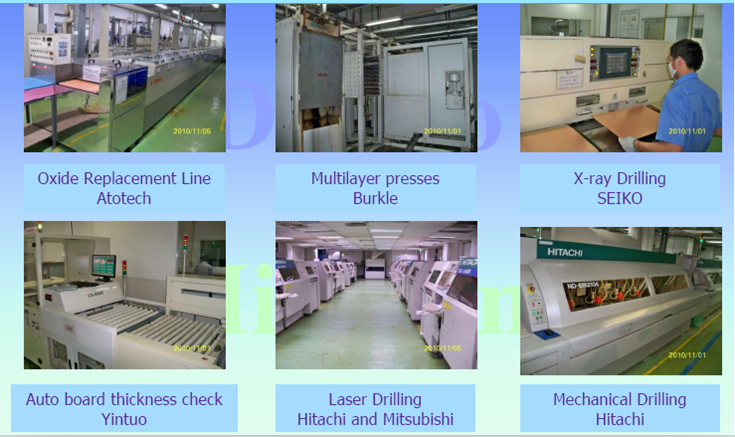

5.Manufacturing Equipment

6.Certificate

7.FAQ

Q1: What files do you use in PCB fabrication?
A1: Gerber, PCB. Auto CAD

Q2: How do you make sure the quality?
A2: Our Product is all 100% tested including Flying Probe Test (for sample), E-test (mass) or AOI.

Q3: Can we visit your company?
A3: Of course! Welcome to visit our company, Abis located in Shenzhen, Guangdong province, China.

Q4: What is your minimum order quantity (MOQ)?

A4: Our MOQ is 1 PCS, sample and mass production all can support.

Q5: Will you keep our information and files secret?
A5: Sure! It is our basic principle to keep business secrets to protect our customers' rights and behalf.

Q6. How to work with you?
A6: -Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days.
- Waiting for your company to confirm the price, order and payment method.
- We will start the production.

ABIS Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 7.0000 square meters.

Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security and others.

Our perfect management, advanced equipment, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer satisfaction and support are what we have been strived for.

Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Aluminum base and flexible boards to our customer with fast turn and high-quality level.
