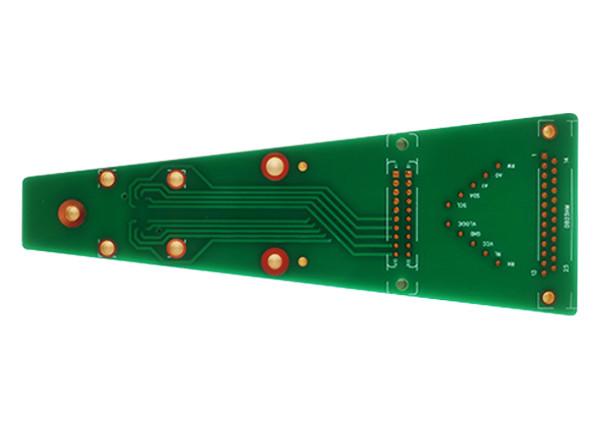

Immersion Gold Rigid Fr4 Double Sided PCB 78.74mil Green Solder Mask
Product Details
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.
Lead Time
| Category | Q/T Lead time | Standard Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| 20+ Layers | Depends on the specific requirements | |||||
FAQ
Q1.What is needed for a quotation?
A: PCB: Quantity, Gerber file, and Technic requirements(material,
surface finish treatment, copper thickness, board thickness,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security. We protect
the intellectual property of our customers in the whole process.
All documents from customers are never shared with any third
parties.
Q4. MOQ?
A: There is no MOQ in the ABIS PCB. We are able to handle Small as
well as large volume production with flexibility.
Q5.Shipping cost?
A: The shipping cost is determined by the destination, weight,
packing size of the goods. Please let us know if you need us to
quote you the shipping cost.
Q6. Do you accept process materials supplied by clients?
A Yes, we can provide a component source, and we also accept component from client
High sales of PCB Types
Capacity
| Item | Production Capacity |
| Layer Counts | 1-20 layers |
| Material | FR-4,Aluminum Base,Cu base,High TG FR-4,PTFE,Rogers,TEFLON etc. |
| Board thickness | 0.20mm-8.00mm |
| Maximum Size | 600mmX1200mm |
| Board Outline Tolerance | +0.10mm |
| Thickness Tolerance(t≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Minimum Line | 0.075mm |
| Minimum Space | 0.075mm |
| Out Layer Copper Thickness | 18um--350um |
| Inner Layer Copper Thickness | 17um--175um |
| Drilling Hole(Mechanical) | 0.15mm--6.35mm |
| Finish Hole(Mechanical) | 0.10mm-6.30mm |
| Diameter Tolerance(Mechanical) | 0.05mm |
| Registration(Mechanical) | 0.075mm |
| Aspect Ratio | 16:1 |
| Solder Mask Type | LPI |
| SMT Mini.Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance control Tolerance | ±10% |
| Surface finish/treatment | HASL,ENIG,Chem,Tin,Flash Gold, OSP, Gold Finger |
