Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | PCB-M60 |
| Certification : | ISO14001, ISO9001, UL,TS16949 |
| Price : | Customized |
| Payment Terms : | T/T, Western Union, paypal ect. |
| Supply Ability : | 60,000sqm per month |
| Delivery Time : | 1-15 working days |
EMS SMT PCB&PCBA Board Assembly Turnkey Service Quick Turn China PCB
Capacity:
OEM PCB manufacturing Capacity
| Items | Capability |
| OEM PCB Layers | 1-20 layers |
| OEM PCB material | FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc |
| OEM PCB Finished Board Thickness | 0.20mm-8.00mm |
| OEM PCB Copper Thickness | 0.5oz ~ 10oz |
| OEM PCB Max gold plating thickness | 50 microinch |
| OEM PCB Min. Trace Width/Space | 0.075/0.075mm(3/3mil) |
| OEM PCB Min. Finish Holes Size | 0.10mm |
| OEM PCB Max.Finshed Size | 600mm x 1200mm |
| OEM PCB Hole Tolerance | PTH:±0.076mm(+/-3mil), NTPH:±0.05mm(+/-2mil) |
| OEM PCB Soldermask Color | Green, White, Black, Red, Yellow, Blue,ect |
| OEM PCB Silkscreen Color | White, Black, Yellow, Blue |
| OEM PCB Impedance Control | ±10% |
| OEM PCB Profiling Punching | Routing, V-CUT, Chamfer |
| OEM PCB Special Holes | Blind/Buried holes, Countersunk holes |
| OEM PCB Surface Finishing | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc. |
| OEM PCB Certificate | UL, ISO9001, ROHS, SG |
SMT PCBA assembly service Capacity
| Items | Capacity |
| SMT PCBA Assembly Min. IC Pitch | 0.30mm(12mil) |
| SMT PCBA Assembly Foot Pin | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
| SMT PCBA Assembly Min. Chip Placement | 201 |
| SMT PCBA Assembly Max. PCB Size | 410mm x 600mm(16.2" x 23.6") |
| SMT PCBA Assembly Maximum BGA Size | 74mm x 74mm(2.9" x 2.9") |
| SMT PCBA Assembly BGA Ball Pitch | 1mm ~ 3mm(4mil ~ 12mil) |
| SMT PCBA Assembly BGA Ball Diameter | 0.4mm ~ 1mm(16mil ~ 40mil) |
| SMT PCBA Assembly QFP Lead Pitch | 0.38mm ~ 2.54mm(15mil ~ 100mil) |
| SMT PCBA Assembly Method | SMT, DIP, AI,MI assembly |
| SMT PCBA Assembly Certification | ISO9001, ISO13485, IATF16949 |
Turnkey Electronics manufacturing Service
| pcb service | PCB circuit design, PCB Layout, pcb manufacturing, pcb copy |
| PCB components | PCB components advicing, PCB compoments sourcing |
| PCBA | OEM PCB prototype assembly, pcb with components, |
| Testing | PCBA AOI test, PCB Assembly BGA X-RAY test, PCBA ICT test, PCBA FCT test |
| Conformal coating | Conforal coating via coatingmachine , and UV oven |
| Box Build | BOX build, box assembly |
| Turnkey service | wire harness, sheet metal, plastic |
Quality Control:
Q/T Lead Time
| Category | Quickest Lead Time | Normal Lead Time |
| Double sideds | 24hrs | 120hrs |
| 4 Layers | 48hrs | 172hrs |
| 6 Layers | 72hrs | 192hrs |
| 8 Layers | 96hrs | 212hrs |
| 10 Layers | 120hrs | 268hrs |
| 12 Layers | 120hrs | 280hrs |
| 14 Layers | 144hrs | 292hrs |
| 16-20 Layers | Depends on the specific requirements | |
| Above 20 Layers | Depends on the specific requirements | |
Company Profile:
Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.
Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high-quality level.
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.

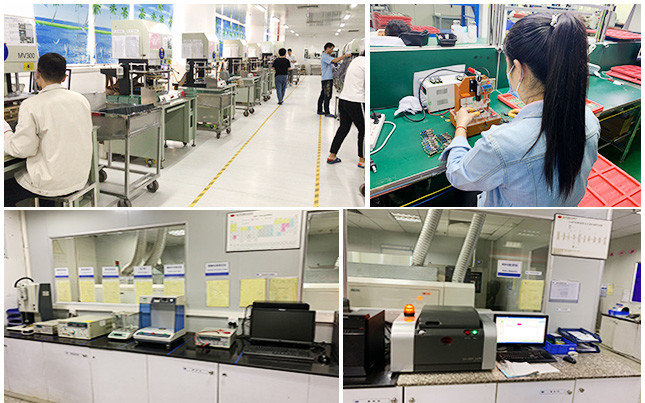

Workshop:
Why choose us:
1, With ABIS, customers significantly and effectively reduce their
global procurement costs. Behind each service provided by ABIS, is
hidden a cost saving for customers.
2, We have two shop together, one is for prototype, quick turn,
small volume making. The other is for mass production also for HDI
board, with highly skilled professional employees, for high quality
products with competitive price and on-time delivery.
3, We provide very professional sales, technical and logistic
supports, on a world-wide basis.hours complaint feedback
FAQ :
Q1: How can I get a quotation:
. Please send gerber file with format: .PCB / .P-CAD / .DXP / .Gerber
Q2: Can you manufacture my PCBs from a picture file?
. Could you please provide a sample?
Q3: Do you have PCB in stock?
. Most of our PCB board are customized, which according to Gerber file.
. ABIS has samples in stock that could be sent to you for quality
checking always.
Q4: What board manufacturer do you use for FR4?
. Main Suppliers(FR4): Kingboard (Hong Kong), NanYa (Taiwan), and
Shengyi (China).
Q5: Will my PCB files be checked?
. Checked within 12 hours. Once Engineer's question and working
file be approved, production will start.
Q6: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
|
|
