Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | PCB-M75 |
| Certification : | ISO14001, ISO9001, UL, cUL, TS16949 |
| Price : | Customized |
| Payment Terms : | T/T, Western Union, paypal ect. |
| Supply Ability : | 60,000sqm per month |
| Delivery Time : | 1-15 working days |

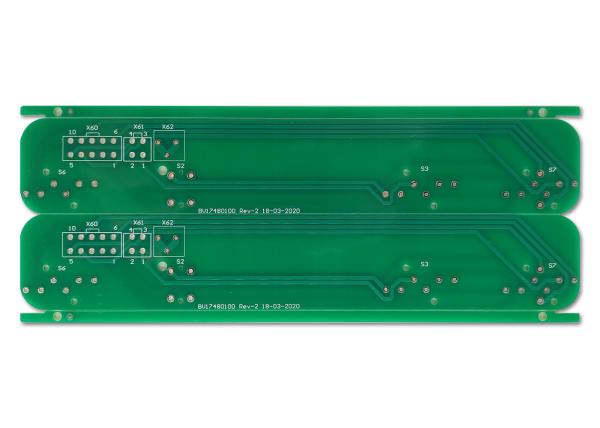

Wholesale Customized Double Sided PCB 2 Layers PCB Green Ink China PCB
Capacity
| Item | Production Capacity |
| Layer Counts | 1-20 layers |
| Material | FR-4,Aluminum Base,Cu base,High TG FR-4,PTFE,Rogers,TEFLON etc. |
| Board thickness | 0.20mm-8.00mm |
| Maximum Size | 600mmX1200mm |
| Board Outline Tolerance | +0.10mm |
| Thickness Tolerance(t≥0.8mm) | ±8% |
| Thickness Tolerance(t<0.8mm) | ±10% |
| Insulation Layer Thickness | 0.075mm--5.00mm |
| Minimum Line | 0.075mm |
| Minimum Space | 0.075mm |
| Out Layer Copper Thickness | 18um--350um |
| Inner Layer Copper Thickness | 17um--175um |
| Drilling Hole(Mechanical) | 0.15mm--6.35mm |
| Finish Hole(Mechanical) | 0.10mm-6.30mm |
| Diameter Tolerance(Mechanical) | 0.05mm |
| Registration(Mechanical) | 0.075mm |
| Aspect Ratio | 16:1 |
| Solder Mask Type | LPI |
| SMT Mini.Solder Mask Width | 0.075mm |
| Mini. Solder Mask Clearance | 0.05mm |
| Plug Hole Diameter | 0.25mm--0.60mm |
| Impedance control Tolerance | ±10% |
| Surface finish/treatment | HASL,ENIG,Chem,Tin,Flash Gold, OSP, Gold Finger |
| Board Type | Manufacturing Lead Time |
| Single Sided | 5 – 20 Days dependant on volume |
| PTH | 7 – 25 Days dependant on volume |
| Multilayer | 15 – 30 Days dependant on volume & Technology |
Abis Circuits Co. Ltd, established in 2006, Located in Shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of Industrial Control, Telecommunication, Automotive products, Medical, Consumer, Security, and others.
Now we have passed ISO9001, ISO14001, UL, etc., With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layers, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high-quality level.
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standard.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.
Certificatiion
Workshop
FAQ
Q1: Can you provide free samples for me?
A:Free samples depend on your order quantity.
Q2:I am a small wholesaler, do you accept small order?
A:It's no problem. If you're small wholesaler, we would like to
grow up with you together.
Q3:How many days will samples be finished? And how about the mass
production?
A:Generally 2-3 days for samples making. The lead time of mass
production will depend on the order quantity and the season you
place the order.
Q4:If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number,
Quantity for each item, Quality request, Logo, Payment Terms,
Transport method, Discharge place etc. We will make the accurate
quotation to you as soon as possible.
Q5: How can we know the processing about PCB order?
A: Each Customer will have a sale to contact with you. Our working
hours: AM 9:00-PM 19:00(Beijing Time) from Monday to Friday. We
will reply your email as soon as quickly during our working time.
And you also could contact with our sales by cellphone if urgent.
Q6:Can I have samples to test?
A: Yes, we are pleased to supply module samples to test and check
quality, mixed sample order is available. Please note buyer should
pay for shipping cost.
Q7:Can you design pcb and make files for us?
A:yes,We have a professional drawing engineers' team that you can
trust.
Q8:If all pcb , PCBAs will be tested before delivery if we provide
the function testing method?
A:Yes, we ensure that each piece of pcb, PCBA will be tested before
shipment, we ensure the goods we sent with good quality
Q9:What is the shipping method?
A:We suggest you using DHL, UPS, FedEX, TNT forwarder.
Q10: What do you require in order to produce an assembly quotation?
. Bill of materials (BOM) detailing:
a), manufacturers parts numbers,
b), components suppliers' parts number (e.g. Digi-key, Mouser, RS )
c), PCBA sample photos if possible.
d), Quantity
Please keep us informed for any intereste!
ABIS cares every your order even 1 pcs!
|
|
