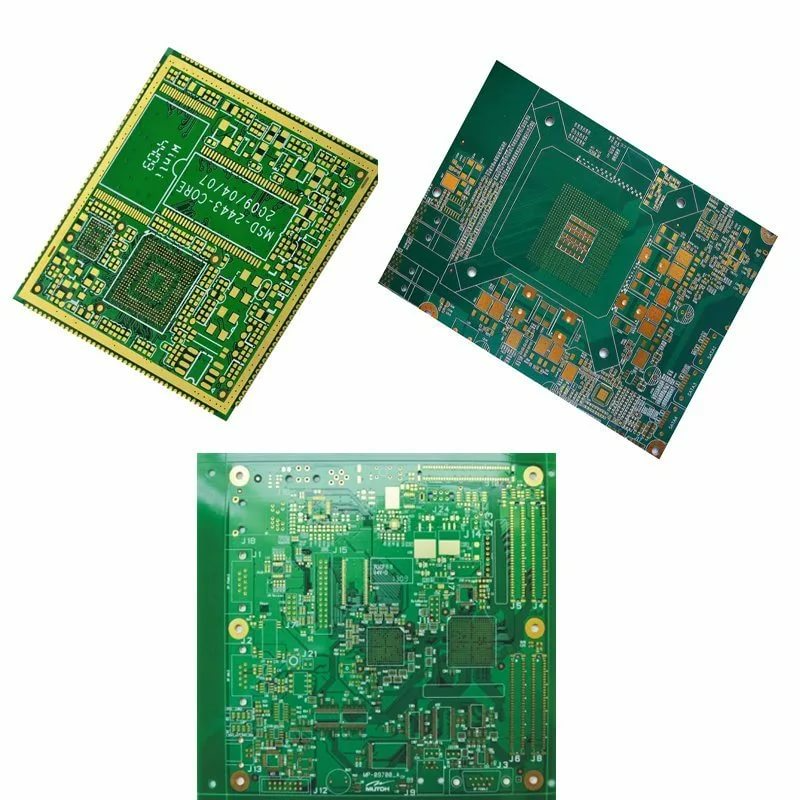

China Customized Prototype PCB Board Printed Circuit Board for Electronics
Product details
1. Single, Double side & Multi-layer PCB.
2. Buried/Blind Vias, Via in Pad, Counter Sink Hole, Screw Hole(Counterbore), Press-fit, Half Hole.
3. HASL lead-free, Immersion Gold/ Silver/Tin, OSP, Gold plating/finger, Peelable mask,
4. Printed Circuit Boards adhere to IPC Class 2 & 3 international PCB standards.
5. Quantities range from prototype to medium&big batch production.
6.100% E-Test.
| No. of Layers | 1-40 layers |
| Max. Board Size | 860*610mm |
| Board Thickness | 0.2-6.0mm |
| Copper Thickness | 0.5OZ-6OZ |
| Material | Various |
| Surface Finish | Various |
| Soldermask | Various |
| Minimum Soldermask Thickness | 0.025mm |
| Minimun Soldermask BridgeDam | 0.15mm |
| Minimum Soldermask Clearance | 0.075mm |
| Peelable Colours | Blue |
| Peelable Minimum Feature | 0.5mm |
| Peelable Maximum Tented Hole | 3.0mm |
| Scoring Angle | 30 Degrees |
| Min. Remaining Thickness | 0.3mm |
| Min. Distance to copper (From the center of the scoring line) | 0.5mm |
| Min. Track | 0.1mm |
| Min.Gap(TrackTrack,TrackPad,PadPad) | 0.1mm |
| NPTH Min. Drill Size | 0.2mm |
| Plated Drill Size | ± 0.075mm |
| Non-Plated Drill Size | ± 0.05mm |
| Drill Location Tolerance | ± 0.05mm |
| OutlineRouted Slots | ± 0.1mm |
| Line Width/Spacing | ±10% |
| Board Thickness | ±10% |
| Warp and Twist | 0.05% |
| Scoring/V-Cut | ± 5 degrees |
| Scoring Positional Tolerance | ± 0.1mm |
| Aspect Ratio | 10:01 |
Quick Turn Lead time:
| Category | Quickest Lead Time | Normal Lead Time |
| Double-sided | 24hrs | 120hrs |
| 4 Layers | 48hrs | 172hrs |
| 6 Layers | 72hrs | 192hrs |
| 8 Layers | 96hrs | 212hrs |
| 10 Layers | 120hrs | 268hrs |
| 12 Layers | 120hrs | 280hrs |
| 14 Layers | 144hrs | 292hrs |
| 16-20 Layers | Depends on the specific requirements | |
| Above 20 Layers | Depends on the specific requirements | |
Company Introduction:
Abis Circuits Co., Ltd, is a professional PCB manufacturer which was established in Oct 2006.
Focus on double side, Multilayer, and HDI PCB mass production.
We have two factories together. The factory in Shenzhen is
specialized in small and middle volume orders.
Another in Jiangxi province is for big volume and HDI.
Our Mission:
PCBs for demanding customers, on time with zero defects, are
produced sustainably at the lowest total cost.
Manufacturing many different types of PCBs in smaller series (High-mix, Low-volume) involves constantly adjusting, adapting, and problem-solving.
