Professional One-Stop Turnkey PCB Assembly Component Sourcing and SMT
1.Company introduction
Abis Circuits Co.,Ltd is a professional PCB manufacturing in Shenzhen, China which is focus on double side, Multilayer and HDI PCB mass production. Our company was established in 2006. We have two factories together and offer a wide range of services from quick turn, PCB prototypes to large volume PCB manufacturing. Our aim is help the clients gain more competitive strength and bring more mutual benefit to each other. All clients will be served well.
2.Factory
(1)OEM PCB manufacturing Capacity
| Items | Capability |
| OEM PCB Layers | 1-20 layers |
| OEM PCB material | FR4, High TG FR4, PTFE,Cu base, Rogers, Aluminium base, etc |
| OEM PCB Finished Board Thickness | 0.20mm-8.00mm |
| OEM PCB Copper Thickness | 0.5oz ~ 10oz |
| OEM PCB Max gold plating thickness | 50 microinch |
| OEM PCB Min. Trace Width/Space | 0.075/0.075mm(3/3mil) |
| OEM PCB Min. Finish Holes Size | 0.10mm |
| OEM PCB Max.Finshed Size | 600mm x 1200mm |
| OEM PCB Hole Tolerance | PTH:±0.076mm(+/-3mil), NTPH:±0.05mm(+/-2mil) |
| OEM PCB Soldermask Color | Green, White, Black, Red, Yellow, Blue,ect |
| OEM PCB Silkscreen Color | White, Black, Yellow, Blue |
| OEM PCB Impedance Control | ±10% |
| OEM PCB Profiling Punching | Routing, V-CUT, Chamfer |
| OEM PCB Special Holes | Blind/Buried holes, Countersunk holes |
| OEM PCB Surface Finishing | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, Carbon, etc. |
| OEM PCB Certificate | UL, ISO9001, ROHS, SG |
(2)SMT PCBA assembly service Capacity
| Items | Capacity |
| SMT PCBA Assembly Min. IC Pitch | 0.30mm(12mil) |
| SMT PCBA Assembly Foot Pin | SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
| SMT PCBA Assembly Min. Chip Placement | 201 |
| SMT PCBA Assembly Max. PCB Size | 410mm x 600mm(16.2" x 23.6") |
| SMT PCBA Assembly Maximum BGA Size | 74mm x 74mm(2.9" x 2.9") |
| SMT PCBA Assembly BGA Ball Pitch | 1mm ~ 3mm(4mil ~ 12mil) |
| SMT PCBA Assembly BGA Ball Diameter | 0.4mm ~ 1mm(16mil ~ 40mil) |
| SMT PCBA Assembly QFP Lead Pitch | 0.38mm ~ 2.54mm(15mil ~ 100mil) |
| SMT PCBA Assembly Method | SMT, DIP, AI,MI assembly |
| SMT PCBA Assembly Certification | ISO9001, ISO13485, IATF16949 |
(3)Turnkey Electronics manufacturing Service
| pcb service | PCB circuit design, PCB Layout, pcb manufacturing, pcb copy |
| PCB components | PCB components advicing, PCB compoments sourcing |
| PCBA | OEM PCB prototype assembly, pcb with components, |
| Testing | PCBA AOI test, PCB Assembly BGA X-RAY test, PCBA ICT test, PCBA FCT test |
| Conformal coating | Conforal coating via coatingmachine , and UV oven |
| Box Build | BOX build, box assembly |
| Turnkey service | wire harness, sheet metal, plastic |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||

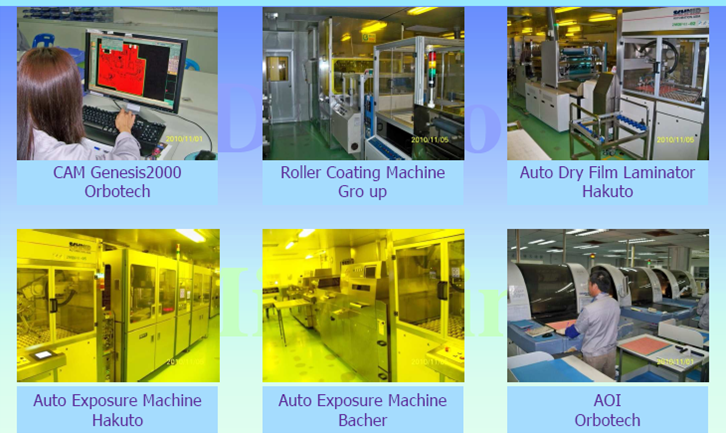

5.Manufacturing Equipment
6.Certificate
7.Workshop
8.FAQ
Q1: What files do you use in PCB and assembly Quotation?
A1: Gerber, pcb. Auto CAD + Bill of Material
Q2: How do you make sure the quality?
A2: Our Product is all 100% tested including Flying Probe Test (for
sample), E-test (mass) or AOI.
Q3: Can we visit your company?
A3: Of course! Welcome to visit our company,Abis is located in
Shenzhen, Guandong province, China.
Q4: What is the lead time?
A4: It takes 3-5 working days for sample, 7-10 working days for
batch production based on files and quantity.
Q5: Will you keep our information and files secret?
A5: Sure! It is our basic principle to keep business secrets to
protect our customers' rights and behalf.
Q6. How to work with you?
A6: -Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to
the offer within 3-5 days.
- Waiting for your company to confirm the price, order and payment
method.
- We will start the production.
|
|
