Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Brand Name : | ABIS |
| Model Number : | AL-2 |
| Certification : | UL, ISO9001,ISO14001,SGS,RoHS, TS16949 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, Paypal |
| Supply Ability : | 60,000 s.q.m/month |
| Delivery Time : | 0.5-4 week |

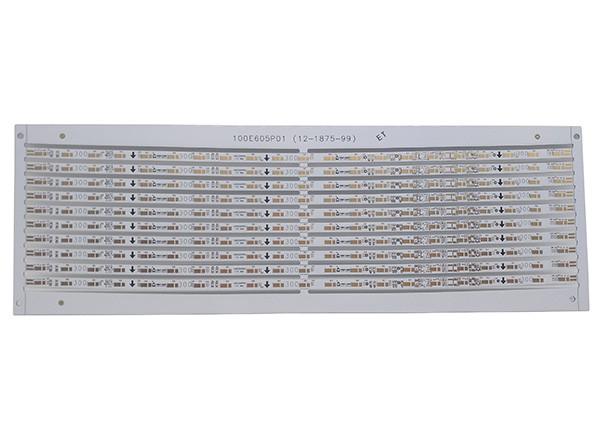

1. 1W/m.K aluminum PCB.
2. Aplied to Interior LED lighting.
3. Immersion gold.
4. 2OZ copper weight.
5. 1.6mm thickness.
| 1 | Layer | Single side |
| 2 | Material | Aluminum core |
| 3 | Board thick | 1.5mm |
| 4 | Applied to | Interior lighting |
| 5 | Min drill | 0.2mm |
| 6 | Middle pad | Heat dissipation |
| 7 | Min line copper | 0.2mm |
| 8 | Surface finish | ENIG |
| 9 | Cu thickness | 1OZ |
| 10 | Solder mask | White |
| 11 | V-cut | 0.5mm |
| 12 | Thermal conductivity | 1W |
| 13 | Certificates | UL(cUL),RoHS,ISO9001/14001,SGS,TS16949 |
FAQ
Q1:Factory or only sales?
A: We're factory for aluminum core PCB 10+years.
Q2:Rough edge or damaged mask existance?
A: No we use CNC route the edge and ensure smooth edge and complete
mask.
Q3:Double side aluminum core PCB available?
A: Yes.
Q4: How about your lead time?
A: Regularly 6-20 working days.
Q5: Which type LED clinet you cooperaion with?
A: Interior and exterior lighting.
Q6: Which type file provided to quote?
A: DXF,RS274-X,ODB++ etc Gerber file is fine.
Inspection:
|
|
