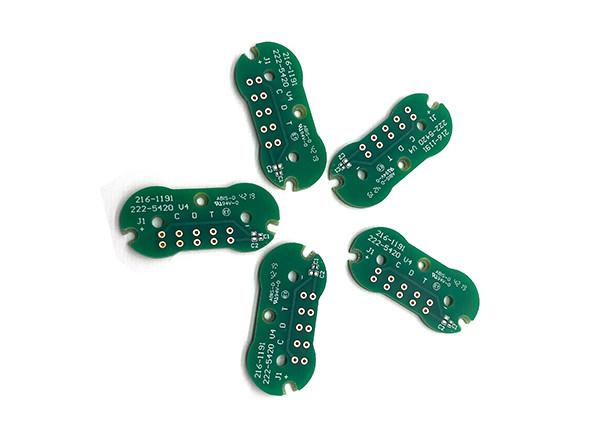

    Enig HASL Finished 1.6mm 110V Double Sided PCB

    Ask Lasest Price
    Brand Name : ABIS
    Model Number : ABIS-003
    Certification : ISO14001, ISO9001, UL
    Price : 0.1-0.8
    Payment Terms : D/A, D/P, T/T, Western Union, L/C
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Enig HASL Finished 1.6mm 110V Double Sided PCB

    Professional Double-Side PCB Card with Enig HASL Finished


    Abis Circuits Co.,Ltd is a professional PCB manufacturing in Shenzhen, China which is focus on double side, Multilayer and HDI PCB mass production. Our company was established in 2006. We have two factories together and offer a wide range of services from quick turn, PCB prototypes to large volume PCB manufacturing. Our aim is help the clients gain more competitive strength and bring more mutual benefit to each other. All clients will be served well.


    Keywords:


    *Flexible / Rigid Boards
    *Single / Double / Multi-layer Boards
    *Quick Turn Sevices
    *Small Volume Production
    *High Volume and HDI Production


    Enig HASL Finished 1.6mm 110V Double Sided PCB

    Quality control


    1. ABlS certified facilities control all key processes to eliminate all potential issues before produce


    2. ABIS utilizes advanced software to perform extensive DFM analysis on incoming data, and uses advanced quality control systems throughout the manufacturing process.
    3. ABIS performs 100% visual and AOl inspection as well as performing electrical testing, High Voltagetesting, impedance control testing, micro-sectioning, thermal shock testing, solder testing, reliability testing,insulating resistance testing and ionic cleanliness testing.

    specification


    ItemProductionCapacity
    LayerCounts43850
    MaterialFR-4,HighTGFR-4,PTFE,AluminumBase,Cubase.Rogers,et
    MaximumSize600mmX1200mm
    BoardOutlineTolerance+0.10mm
    BoardThickness0.20mm--8.00mm
    ThicknessTolerance(t≥0.8mm)土8%
    ThicknessTolerance(t<0.8mm)土10%
    InsulationLayerThickness0.075m--5.00mm
    MinimumLine0.075mm
    MinimumSpace0.075mm
    OutLayerCopperThickness18um--350um
    InnerLayerCopperThickness17um--175um
    DillingHole(Mechanical)0.15m--6.35mm
    FinishHole(Mechanical)0.0m--6.30mm
    DiameterTolerance(Mechanical)0.05mm
    Registration(Mechanical)0.075mm
    AspectRatio0.667361111
    SolderMaskTypeLPI
    SMTMini.SolderMaskWidth0.075mm
    Mini.SolderMaskClearance0.05mm
    PlugHoleDiameter0.25mm--0.60mm
    ImpedanceControlTolerance土10%
    SurfaceFinishHASL,ENIG,Chem.Tin,FlashGold,OSP,Goldfinger

    Delivery


    Sample (The sample volume is below than 1 sq meters)
    Double side:3-4 Working Days
    4-6 Layer :4-5 Working Days
    8-12 Layer:10-12 Working Days
    14-18 Layer:15-16 Working Days
    Mass production
    Double sided8-10 Working Days
    4-6 Layers10-12 Working Days
    8-12 Layers14-18 Working Days
    12-18 Layers20-26 Working Days

    Manufacturing Equipment


    Enig HASL Finished 1.6mm 110V Double Sided PCB


    Enig HASL Finished 1.6mm 110V Double Sided PCB

    Pre-Sale and After-Sale Service

    1 Hour quotation
    2 hours complaint feedback
    7*24 hour technical support
    7*24 order service
    7*24 hour delivery
    7*24 production run


    FAQ

    Q1:Are you a factory or trade company?
    A: Abis is a PCB/FPC/PCBA manufacturer/factory. We pecialize in PCB/PCBA Board for 11 years.

    Q2:Is my PCB file safe if I send it to you for manufacturing?
    A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.

    Q3:What is your testing policy and how you control the quality?
    A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.

    Q4: What's your shipping way ?
    A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
    2. If you have your own forwarder, we can cooperate with them.

    Q5: What is your certificate?
    A: ISO9001:2008, ISO14001: 2004, UL, SGS report.

    Q6: What files should we offer?
    A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.

    Q7: Can I get a sample?
    A: Yes, It's reasonable to get a sample to test our quality at first.

    Q8: Why choose us?
    A: With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.

    . We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.

    . We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback.
