Abis Circuits Co., Ltd One stop PCB solution, we fight for our customers success! We labor for simplicity!
5 Years
| Ask Lasest Price | |
| Certification : | ISO14001, ISO9001, UL, cUL, TS16949 |
| Price : | Customized |
| Payment Terms : | T/T, paypal, , Western Union etc. |
| Supply Ability : | 60,000sqm per month |
| Delivery Time : | 1-15 working days |

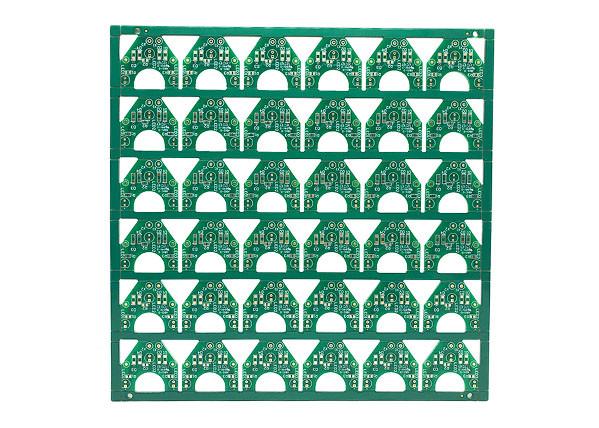

Rigid Board FR4 Single Side PCB With Immersion Gold Surface Finish In Green Solder Mask
1.Company introduction
2.Factory
| No | Items | Capability |
| 1 | Layers | 1-20 |
| 2 | Base Material | FR4, High Tg FR4, Halogen Free, Isola, Rogers, Aluminium, etc |
| 3 | Max. Size | 600mm x 1200mm |
| 4 | Finished Board Thickness | 0.2mm-8.0mm |
| 5 | Copper Thickness | 0.5oz-10oz |
| 6 | Surface Finishing | HASL, Lead Free HASL, Immersion tin, Immersion gold, Gold plating, Immersion silver, OSP, etc. |
| 7 | Min. Trace Width/Space | 0.075/0.075mm |
| 8 | Min. Finish Holes Size | 0.1mm for mechanical holes |
| 9 | Diameter Tolerance | 0.05mm for mechanical |
| 10 | Registration | 0.075mm for mechanical |
| 11 | Soldermask Color | Green, White, Black, Red, Yellow, Blue |
| 12 | Silkscreen Color | White, Black, Yellow, Blue |
| 13 | Impedance Control | +/-10% |
| 14 | Profiling Punching | Routing, V-CUT, Chamfer |
| 15 | Special Holes | Blind/Buried holes, Countersunk holes |
| 16 | Reference Standard | IPC-A-600H Class 2, Class 3, TS16949 |
| 17 | Certificate | ISO14001, ISO9001, UL, cUL |
| 18 | PCB Package | Vacuum & Carton |
4.Lead time
| Category | Quickest Lead time | Normal Lead Time | Mass Production | |||
| 2 Layers | 24hrs | 3-4 working days | 8-15 working days | |||
| 4 Layers | 48hrs | 3-5 working days | 10-15 working days | |||
| 6 Layers | 72hrs | 3-6 working days | 10-15 working days | |||
| 8 Layers | 96hrs | 3-7 working days | 14-18 working days | |||
| 10 Layers | 120hrs | 3-8 working days | 14-18 working days | |||
| 12 Layers | 120hrs | 3-9 working days | 20-26 working days | |||
| 14 Layers | 144hrs | 3-10 working days | 20-26 working days | |||
| 16-20 Layers | Depends on the specific requirements | |||||
| Above 20 Layers | Depends on the specific requirements | |||||
5.Certificate
6.FAQ
Q1: What service do you have?
-We provide turnkey solution including PCB fabrication, SMT,
plastic injection & metal, final assembly, testing and other
value-added service.
Q2: What is needed for PCB & PCBA quotation?
-For PCB: Quantity, Gerber file and technic requirements(material,
size, surface finish treatment, copper thickness, board thickness
etc.).
-For PCBA: PCB information, BOM,Testing documents.
Q3: How to keep our product information and design file secret ?
-We are willing to sign a NDA effect by customers side local law
and promising tokeep customers data in high confidential level.
Q4: What are the main products of your PCB/PCBA services?
-Automotive, Medical, Industry Control, IOT, Smart Home, etc.
Q5: What is your minimum order quantity (MOQ)?
-Our MOQ is 1 PCS, sample and mass production all can support.
Q6: Are you factory?
-We have two factories together , the factory in Shenzhen is specialized in small and middle volume orders and the
factory in Huizhou is for big volume and HDI.
|
|
